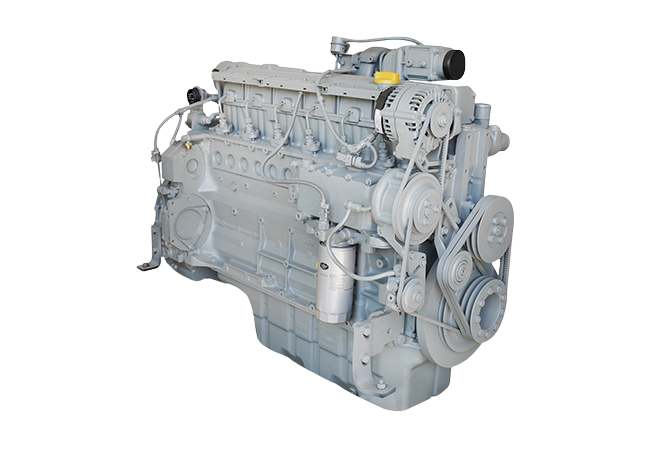

BF6M1013 Diesel Engine
This engine is the water-cooled Deutz 6 cylinder BFM 1013 series engine. Normally, we offer standard configurations without cooling system. We can also provide you with customized water tank engines if you need.
This engine is widely used in generator sets, water pump units, excavators and loaders, etc. Each of our engines will be strictly configured before production to ensure that the engines we provide fully meet your requirements.
- Product Details
- Products Description
| BF6M1013EC | BF6M1013ECP | BF6M1013FC | |
| Rated Power(kw) | 174 | 195 | 206 |
| Rated Speed(rpm) | 2300 | 2300 | 2300 |
| Max torque/speed(N.m/rpm) | 854/1400 | 954/1400 | 1050/1400 |
| Aspiration | Turbocharged inter-cooled | Turbocharged inter-cooled | Turbocharged inter-cooled |
| No. of cylinders | 6 | 6 | 6 |
| Configuration | In-line | In-line | In-line |
| Injection system | Mechanical unit pump | Mechanical unit pump | Mechanical unit pump |
| Displacement(L) | 7.146 | 7.146 | 7.146 |
| Bore(mm) | 108 | 108 | 108 |
| Stroke(mm) | 130 | 130 | 130 |
| Compression ratio | 18 | 18 | 18 |
| Rotation(looking at flywheel) | Counter clock wise | Counter clock wise | Counter clock wise |
